195-20 Hollow 5-Grid Fluted Panel
  • 195-20 Hollow 5-Grid Fluted Panel195-20 Hollow 5-Grid Fluted Panel

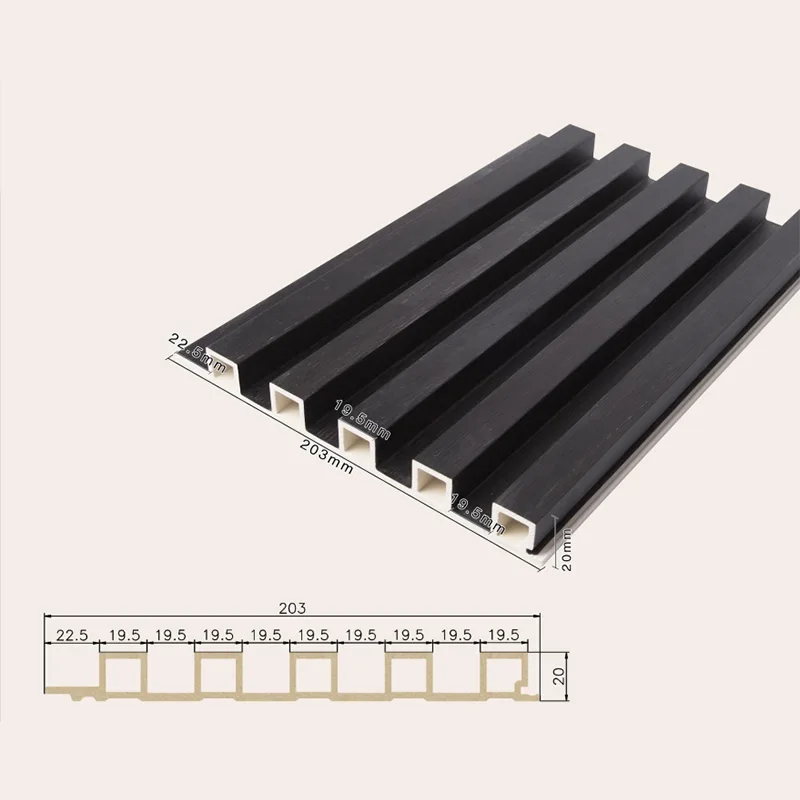

195-20 Hollow 5-Grid Fluted Panel

The Hizete 195-20 Hollow 5-Grid Fluted Panel is an innovative high-strength polymer composite wall panel for wall protection. Developed by a professional manufacturer, Hizete's five-ribbed hollow structure effectively disperses impact force, offering superior structural stability, impact resistance, and ease of installation. It is suitable for high-frequency collision scenarios such as underground parking garages and logistics corridors.

The Hizete 195-20 Hollow 5-Grid Fluted Panel combines five major advantages: superior impact resistance, long lifespan, and low maintenance. Proven in real-world projects, it reduces wall wear and tear and lowers costs, making it a cost-effective upgrade from traditional crash barriers. Leveraging its professional manufacturing capabilities and factory capacity, Hizete provides reliable wall protection products and one-stop solutions to customers worldwide.


Key Design Highlights

1. Five-Grid Hollow Structure: Significantly improves impact resistance compared to traditional panels.

2. 20mm Thickness: Suitable for medium to high-intensity protection, balancing strength and economy.

3. Corrugated Surface: Enhances friction, combining practicality and aesthetics.

4. Modular Assembly: Improves installation efficiency by over 30%.


Key Performance Advantages

1. Superior Impact Resistance: The 195-20 Hollow 5-Grid Fluted Panel's five-cavity structure effectively buffers and disperses external forces, increasing compressive strength by 20%-30% compared to traditional three-cavity structures. It can withstand ≥5000 consecutive impacts without breakage, making it suitable for high-frequency impact environments.


2. Lightweight & Efficient Design: The hollow structure reduces weight, lowering transportation and installation costs, and reducing wall load, providing a lightweight protection option for various projects in China.


3. Waterproof & Corrosion Resistant: The 195-20 Hollow 5-Grid Fluted Panel uses HDPE/PP substrate, making it waterproof, moisture-proof, and resistant to acids and alkalis. Suitable for humid and corrosive environments such as underground garages, it will not deform or mold over long-term use.


4. Easy Maintenance: The smooth surface and corrugated design result in low stain adhesion, reducing maintenance costs by over 60% compared to traditional panels, significantly reducing future investment.


5. Quick Installation System: Dual installation methods of clips and screws, modular splicing eliminates the need for complex base treatment, increasing installation efficiency by approximately 35%, shortening construction time, and saving labor.


Real-World Applications

Case 1: Underground Garage of a Large Commercial Complex

1. Project Pain Points: Frequent vehicle scratches; high maintenance costs and susceptibility to damage with traditional PVC panels.


2.Application Results: Wall damage rate decreased by 65%; maintenance frequency decreased from once per quarter to once per year; installation efficiency increased by 35%.


3. Verification Conclusion: The five-grid structure effectively absorbs impact force, reduces wall damage, and demonstrates outstanding stability.


Case 2: Logistics Warehouse Passageway

1. Scenario Challenge: High-frequency forklift operation places high demands on the durability of protective materials.


2. Actual Test Performance: ≥5000 consecutive impacts without structural failure, only minor surface scratches.


3. Verification Conclusion: Meets industrial-grade high-frequency impact requirements, with a service life 2-3 times that of traditional materials.


Technical Parameters

Item

Specifications

Product Model

195-20 Hollow 5-Grid Fluted Panel

Structure Type

5-Grid Hollow

Standard Thickness

20mm

Standard Width

195mm

Core Material

Environmentally Friendly Polymer Composite (HDPE/PP)

Surface Process

Fluted Texture

Color Customization

Supports Multi-color Customization

Installation Method

Snap-on Splicing / Screw Fixing

Service Life

5-8 Years


Applications

The 195-20 Hollow 5-Grid Fluted Panel is widely applicable for wall protection in humid and corrosive environments such as underground parking lots, logistics warehouse passageways, industrial plants, hospital/school corridors, and food factories.


Performance Comparison with Traditional Bumper Patches

Comparison Dimension

Hizete 195-20 5-Grid Hollow Panel

Traditional PVC Solid Anti-collision Panel

Impact Resistance

★★★★★

★★★

Service Life

5-8 Years

2-3 Years

Maintenance Cost

Low

High

Installation Efficiency

High

Medium

Waterproof & Corrosion Resistance

Strong

Average

Comprehensive Score

★★★★★ High Cost-Effectiveness

★★★ Average Cost-Effectiveness


Manufacturing & Quality Assurance

As a professional wall protection system supplier, Hizete has a modern, intelligent factory in China, strictly adhering to the ISO 9001 system. We use environmentally friendly raw materials, support ODM/OEM customization, and provide traceable test reports for each batch of products.
