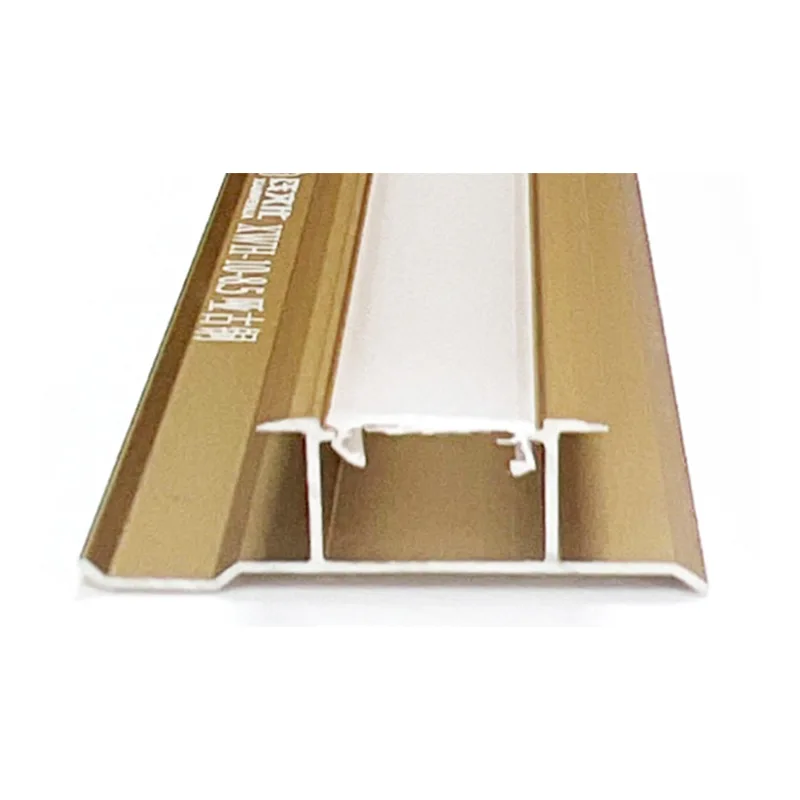

I-shaped LED Channel

Hizete I-shaped LED Channel empowers linear lighting with professional quality, providing efficient, beautiful, and durable lighting solutions for residential, commercial, and architectural settings. It is your preferred partner for creating high-end lighting environments.

Core Product Features

1.Superior Materials and Precision Craftsmanship

Utilizing 6063-T5 aerospace-grade aluminum alloy, this integrated extruded material boasts a wall thickness of 1.0-1.5mm. Its robust structure resists deformation and corrosion. The anodized surface provides a delicate texture, scratch and wear resistance, and prevents fading and rusting over long-term use.

2.Superior Heat Dissipation

The I-shaped integrated cavity design maximizes the contact area between the aluminum and air, rapidly conducting heat from the LED strip. This effectively reduces LED chip temperature, extending the LED strip's lifespan by over 30% and preventing light decay and malfunctions caused by overheating.

3.Optimized Optical Design

Standard configuration includes a high-transmittance PC/acrylic diffuser (transparent/frosted/milky white options available). This precisely diffuses light, eliminating pixelation from the LED chips and achieving glare-free, dark-area-free, uniform, and soft linear light effects. High color rendering adaptable to various lighting needs.

4. Flexible Adaptability and Convenient Installation

- Standard lengths are 1m/2m/3m, which can be cut to fit various installation sizes.

- Pre-drilled slots for LED strips, compatible with 8-12mm wide standard LED flexible strips, COB strips, and rigid strip lights.

- Includes accessories such as clips, screws, and end caps, supporting surface mounting, recessed mounting, and surface mounting. Installation can be completed quickly by a single person.

5. Safe, Durable, and Environmentally Friendly

The product complies with RoHS environmental standards, has strong insulation, a fire rating of V-0, and is compatible with low-voltage 12V/24V LED strips, ensuring safe and hazard-free use. The overall lifespan can reach over 50,000 hours, with extremely low maintenance costs.

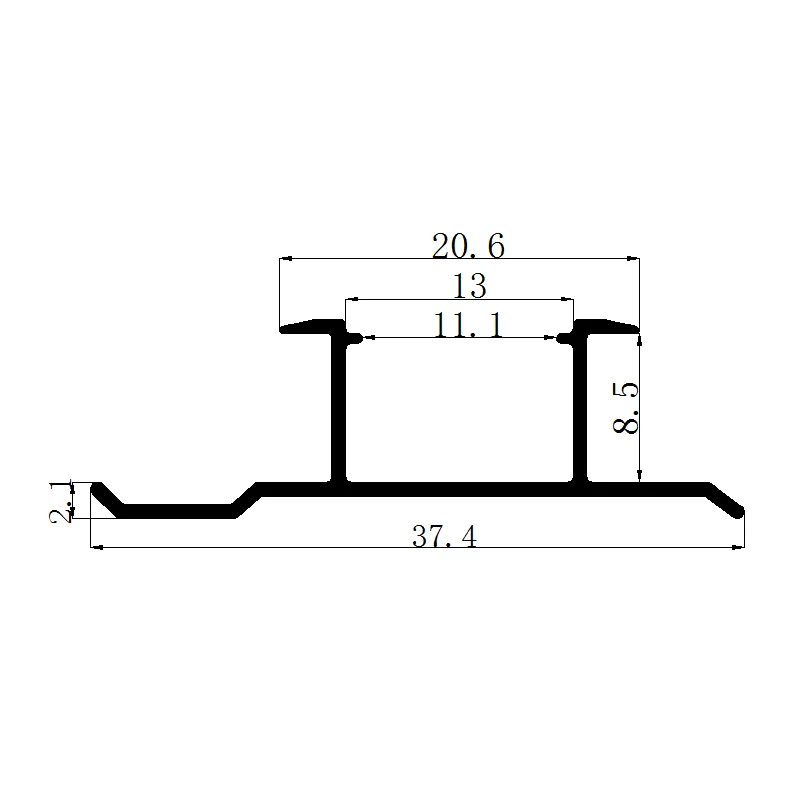

Specifications (Standard Model)

Real-World Application Cases

Case 1: High-End Residential Lighting Without Main Light

Project Requirements: Modern minimalist style; the living room, bedroom, and entryway require concealed linear lighting to enhance the sense of space and atmosphere, requiring soft light and no exposed light fixtures.

Solution: Hizete black I-shaped LED Channels were selected, using an embedded concealed installation process, and integrated into the double-lidded ceiling, headboard wall, and bottom of the shoe cabinet, paired with 3000K warm white COB LED strips.

Implementation Results: The light troughs blend seamlessly with the ceiling, providing uniform and diffused light when the lights are on, with no glare or dark areas, creating a warm and tranquil home atmosphere; when the lights are off, they are invisible and unnoticeable, maintaining the minimalist aesthetic of the space, resulting in 100% homeowner satisfaction.

Case 2: Chain Supermarket Shelf Lighting

Project Requirements: Fresh produce and food shelves required bright and uniform lighting to highlight product colors and enhance the display quality, while also requiring durable and easy-to-maintain lighting fixtures.

Solution: Hizete silver I-shaped LED Channels were used, surface-mounted under the shelf panels, paired with 4000K high CRI (CRI≥90) LED strips.

Implementation Results: Light evenly covers every shelf, eliminating shadows and glare. Fresh produce and baked goods retain their true colors, significantly enhancing product appeal. The light troughs are dustproof and easy to clean, securely installed, and have been trouble-free for one year, reducing store maintenance costs.

Brand and Service Advantages

Hizete, as a professional lighting profile manufacturer in China, possesses a modern factory and advanced production equipment. From raw material procurement to finished product delivery, we implement end-to-end quality control to ensure stable quality and superior performance in every I-shaped LED Channel. As a trusted global supplier, we offer:

1. Customized Services: Customizable sizes, colors, surface treatments, and accessories;

2. Technical Support: Free installation guidance, lighting solution design, and selection advice;

3. After-Sales Guarantee: 2-year product warranty, lifetime maintenance, and rapid response to customer needs.
